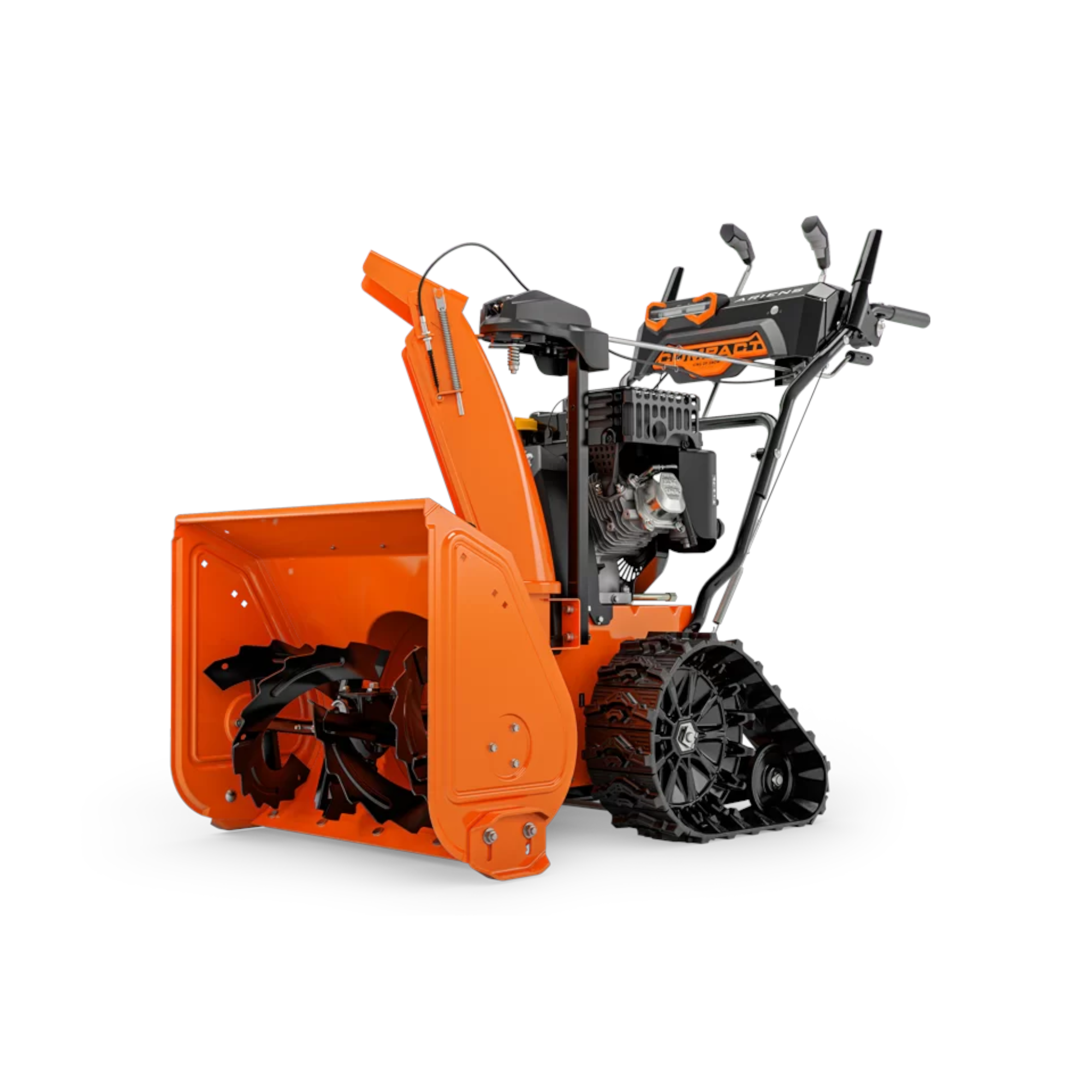

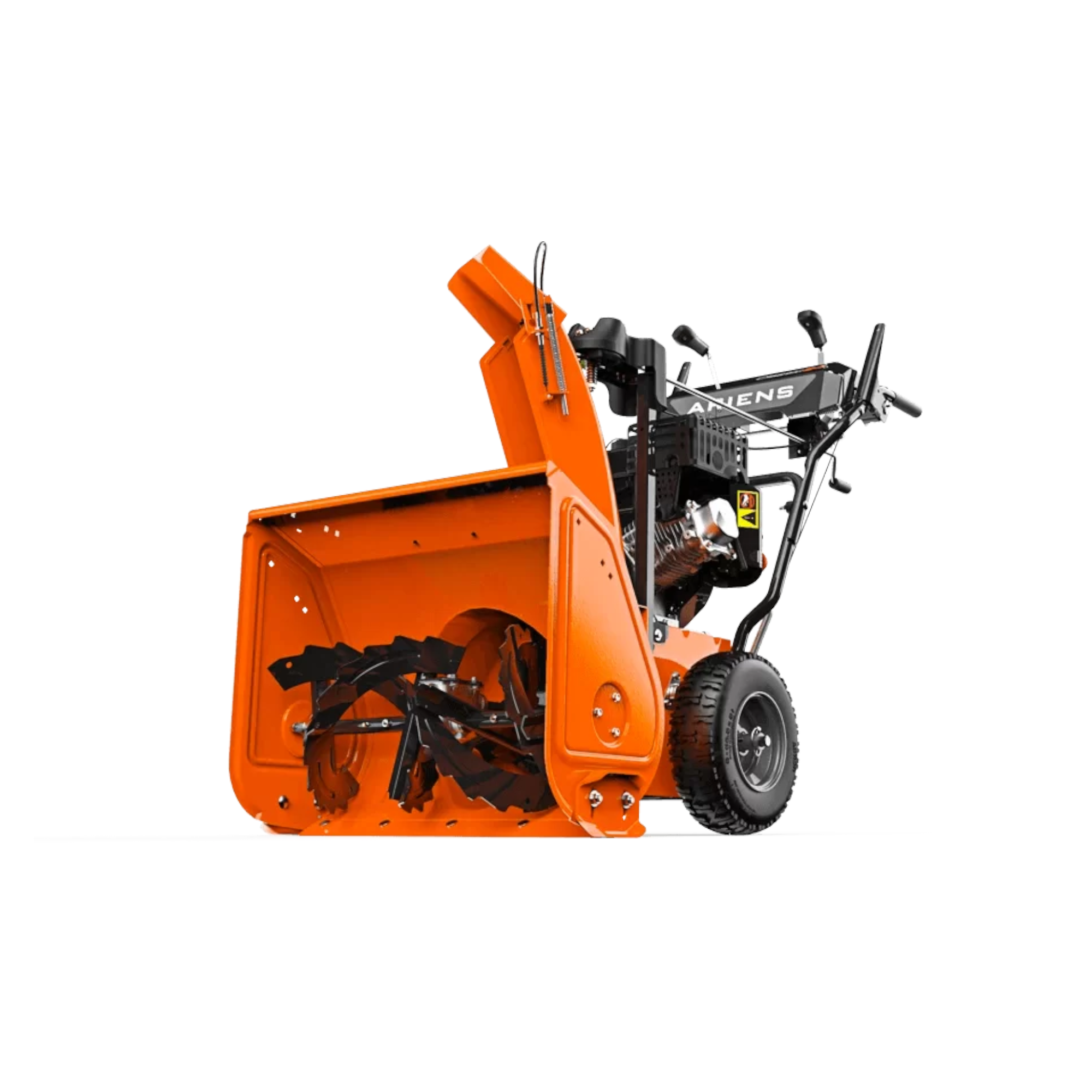

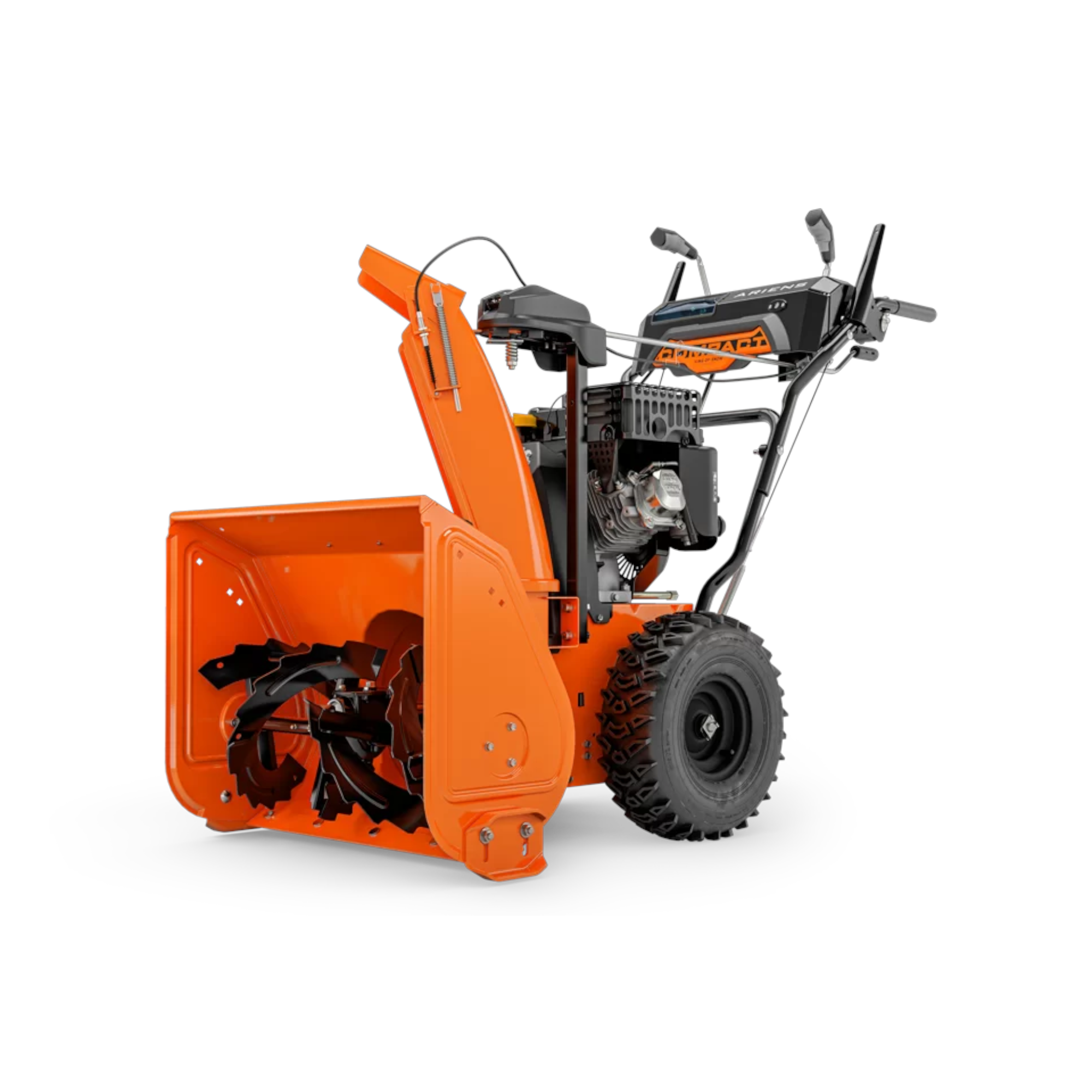

Ariens Compact 24 RapidTrak
Take the snow by storm. Don’t let its size fool you, there’s a lot of power packed into every Ariens® COMPACT. It was designed to be easy enough to take out for a light dusting of snow and reliable enough to tackle up to 52 tons per hour. The COMPACT Series is designed for effortless agility without sacrificing legendary Ariens power.
COMPACT 24 has compact dimensions but is powerful in clearing. With AUTO-TURN, it is incredibly easy to maneuver. It is built entirely of metal and equipped with a finely tuned gearbox. It throws snow from 0.9 meters to 12.2 meters.
All-steel construction
From the handlebars to the housing to the serrated auger, the Classic’s robust, all-steel construction is built to last decades.
Reversible steel skid shoes
Heavy-duty steel skid shoes are reversible and can be used on both sides. Sturdy and durable.

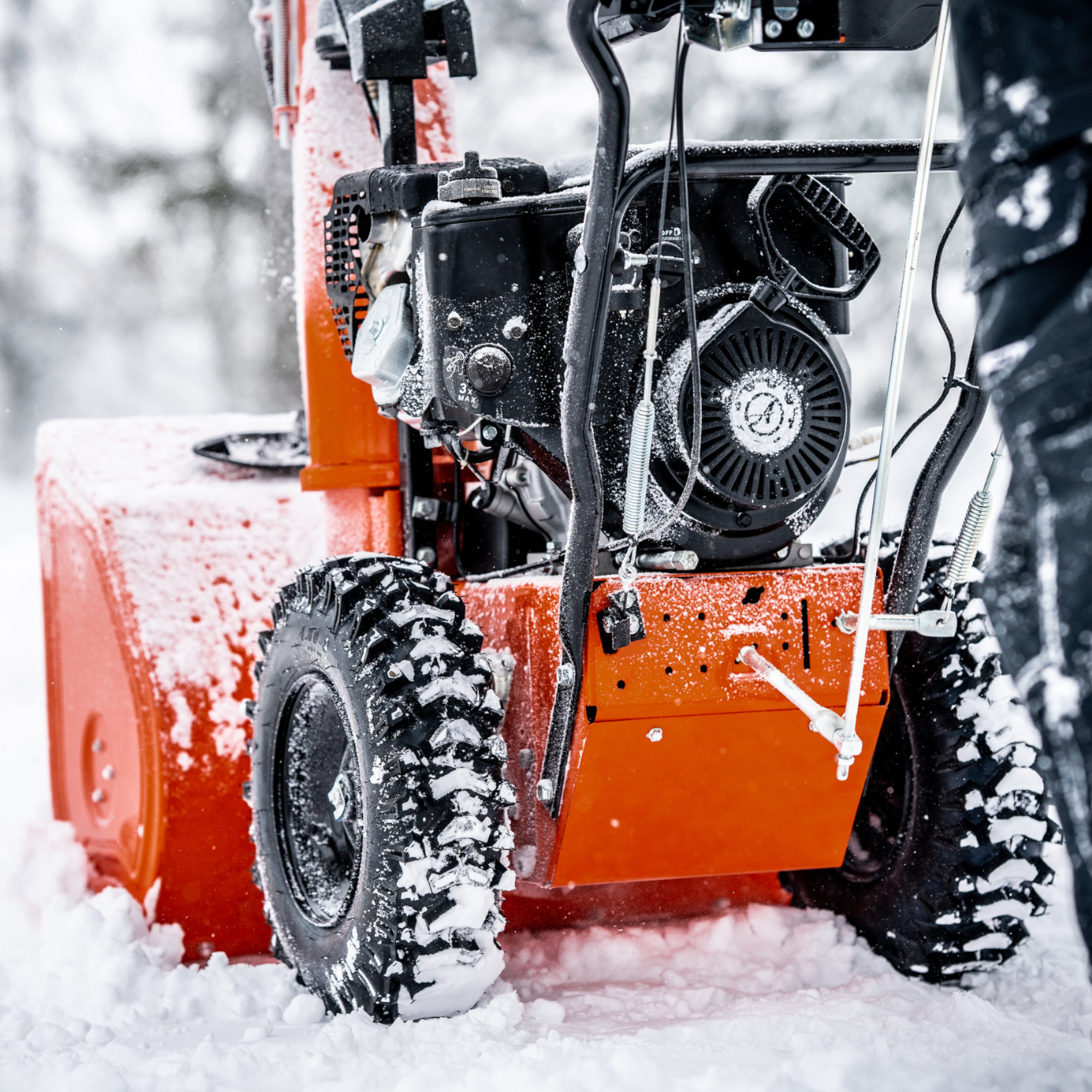

Ariens AX 208cc engine
Strong and efficient, Ariens’ 9.5 foot-pounds of torque moves snow with ease.
Electric start
Push-button starting for quick, easy use in the most extreme temperatures.
Cast-iron gear case
The gearbox of the auger is a highly stressed part. We put a lot of effort into making it particularly stable. Because it is so stable, we also give a 5-year guarantee on it.
Features:
Ariens® AX 208cc engine with electric start
Strong cast-iron gear case

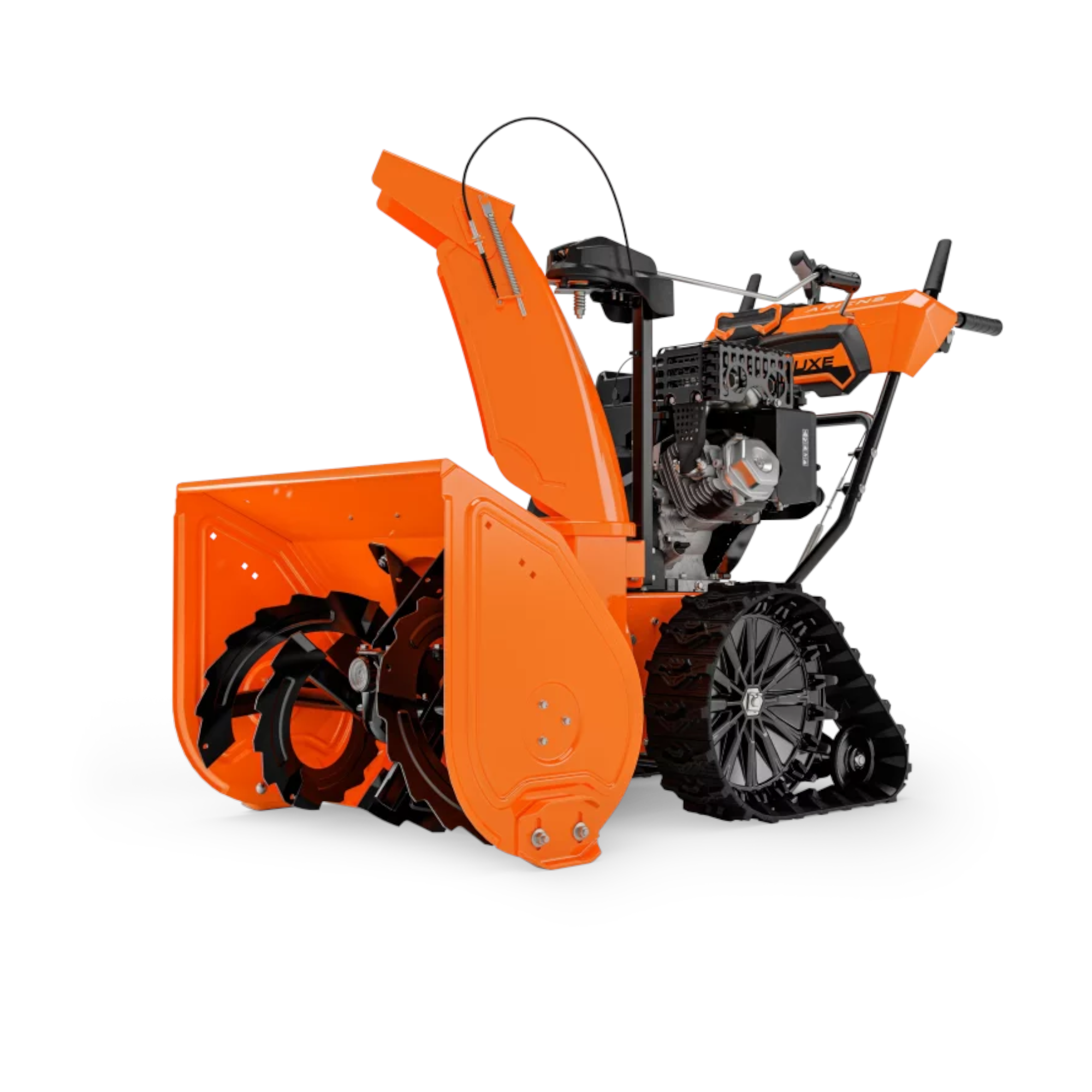

Ariens exclusive Rapidtrak™ technology is capable of tackling any terrain
Specification:
Engine: Ariens AX 208 cm³
Stage Type: Two Stage
Engine Displacement: 208cc
Maximum Power: 4,9 / 6,7 kW/hp @ 3,650 rpm
Max. Torque: 12,78 Nm
Starting System: 230 V & Recoil
Traction Drive: Mechanical
Drive Axle: Auto-Turn
Gears: Forward / Reverse6 / 2
Clearing Width: 61 cm / 24"
Throwing distance: 0.9 - 12.2 m
Tonnes per hour: 52
Chute Rotation: 2,5 x Quick Turn, 205°
Auger Diameter: 27.9 cm
Auger Type: Steel Serrated
Auger housing: 24" (61 x 50 cm)
Tyre size: 12” Tracks
LED Light: 1
Skid Shoes: Steel Reversible
Scraper Bar: Steel Adjustable
Deflector Control: Remote
Lenght: 135cm
Width: 67 cm
Height: 110 cm
Weight: 100 kg
Gear Case Warranty: 5 Year Residential / 1 Year Commercial
Product Warranty: 3 Year Residential / 90 Day Commercial
