Iseki SXG 324 HT (Price +VAT)

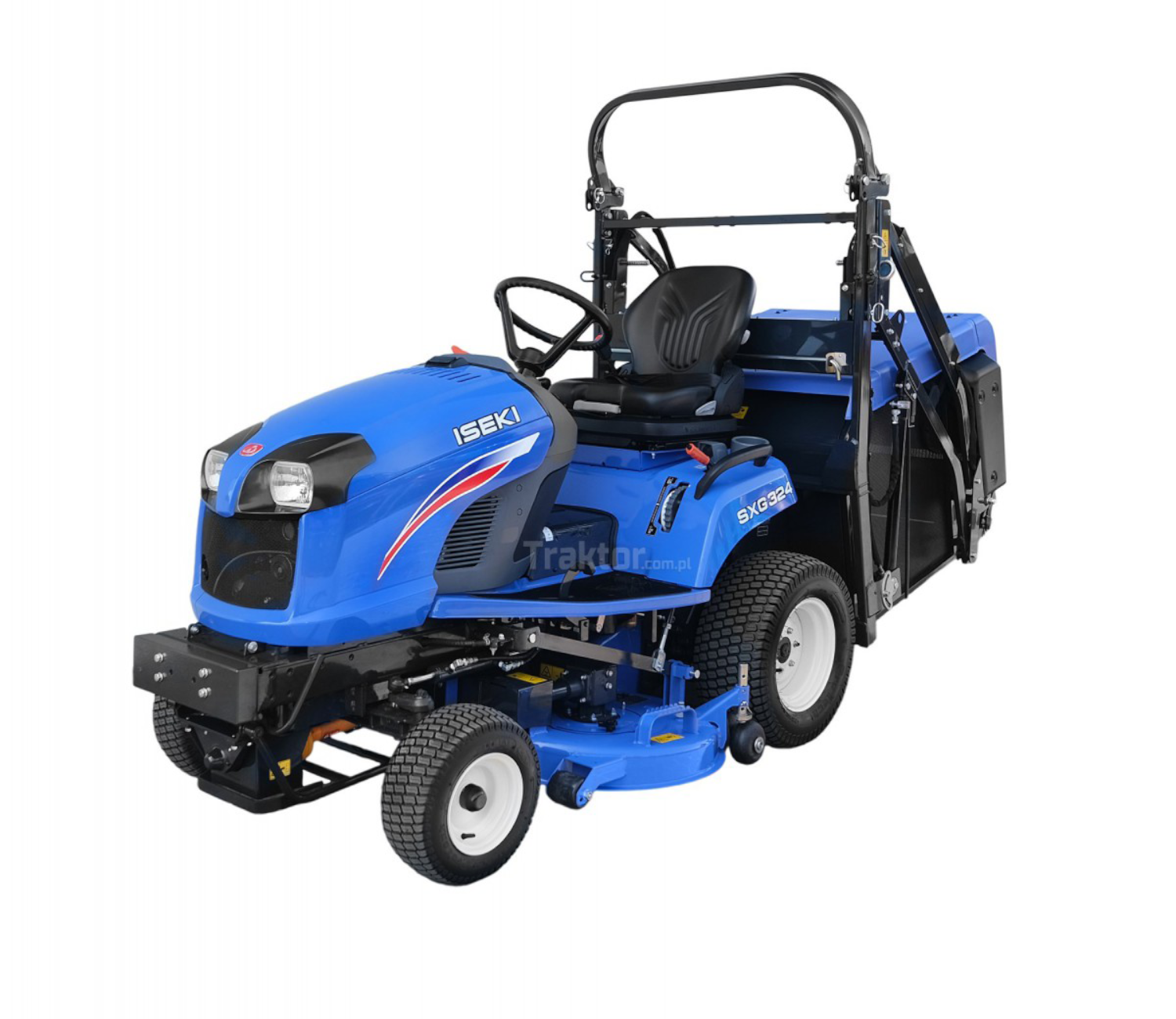

SXG 324 High-Tip 48” Diesel Powered Commercial Mower
Whether you are mowing your lawn, an estate or numerous contracts the versatile ISEKI SXG range of mowers cut and collect leaving a superior finish. Designed and engineered in Japan to offer the most reliable, high quality diesel mower on the market for the most demanding of users.
Renowned for its exceptional cut and collect abilities, the SXG mower range has a number of attributes that allow the machine to cut and collect with no blockages and leave a superior finish everytime. The rear axle is mounted high under the seat out of the way with chain drive to each of the rear wheels, this allows the grass to flow straight through from the deck to the collector with no obstructions to avoid unwanted blockages.
Because of it's large capacity, low revving 1123cc engine the SXG324 creates very little vibration and wear and tear on the engine, whilst also being very fuel efficient and powerful up to 19.4hp.
Simple to drive, the 2-pedal hydrostatic system allows for the ultimate control so you can quickly change direction and speed whilst mowing with minimal effort. The large operators platform offers maximum comfort with plenty of leg room, ergonomic controls and suspension seat.

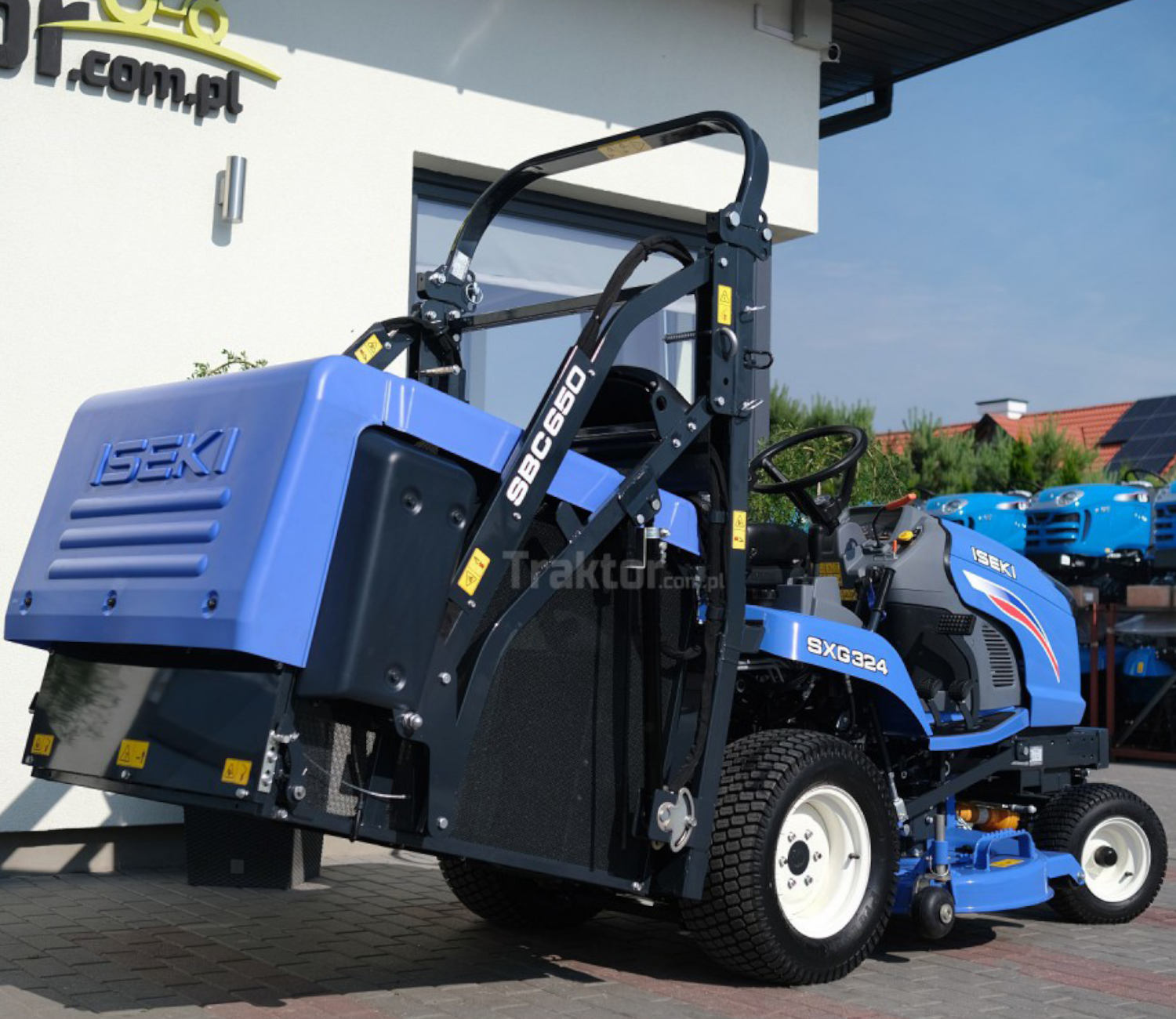

To make disposing of grass cuttings easy the SXG324 HT has a hydraulically operated high tip collection system which can lift up to a height of 1.97m. Built to be perfectly balanced, even when the collector is full and tipping from maximum height, there are no additional weights required.
Specification:
POWER
Engine: Type Diesel, indirect injection, overhead valve
Displacement: 1123cc
No of cylinders: 3
Power: 14.6kW (9.4hp) at 2,600rpm
Fuel Capacity: 21ltr)
TRANSMISSION
Type: HST (hydrostatic transmission) 2WD
Rear axle: Chain drive to each wheel
Steering system: Power steering
PTO: Front - 1750 min-1 (rpm)
BRAKES
Type: Dry internal-shoe expanding
No. of brakes: 1 (before diff)
TYRES
Front: 16 x 6.50-8
Rear: 23 × 10.50-112
MOWER DECK
Model: SCMB48
No. of blades: 2
Discharge Centre: rear
Cutting width: 1.22m (48”)
Cutting height: 25mm (1”) – 115mm (4.5”)
Adjustments: 7 stage via clevis pin and stepless dial
COLLECTOR
Model: SBC650X High Dump
Capacity: 650ltr
Type: Blowerless, centre collection, high dump
Dump system: Hydraulic
Height of Dump: 2.08m
Weight: 210kg (463lb)
DIMENSIONS
Height: 1.99m
Width: 1.22m
Length: 3.24m
Wheelbase: 1.36m
Total Weight: 742kg
Ground clearance: 130mm (5.1”)
