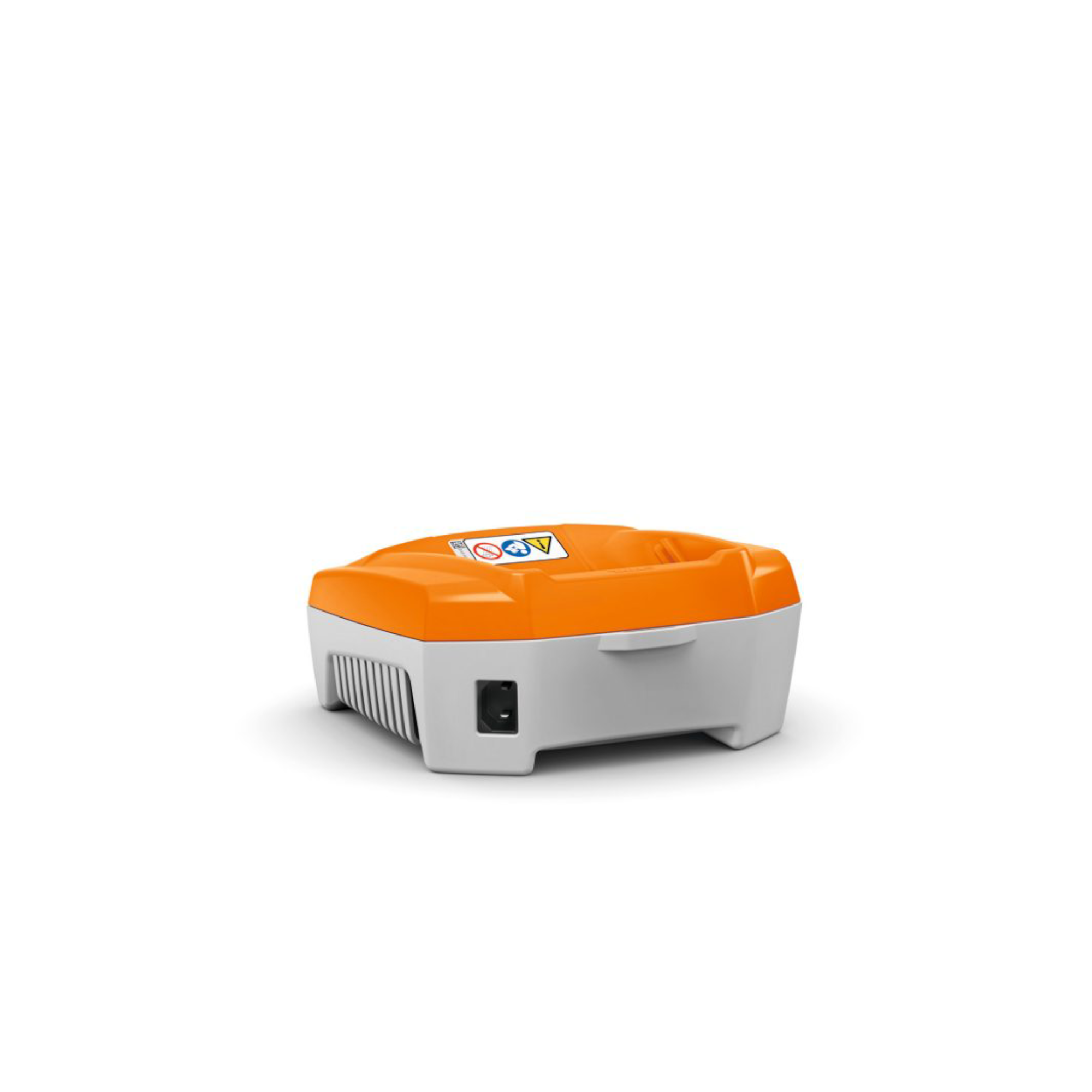

Stihl AL 501

Stihl AL 501 Hi-Speed Charger

230 V hi-speed quick charger, recommended for STIHL AP System batteries (can also be used with AK System batteries). With operating mode indicator and active battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.

AP System charge times (mins 80/100%):

• AP 200 battery in 25/35 minutes

• AP 200 S battery in 30/45 minutes

• AP 300 S battery in 30/45 minutes

• AP 500 S battery in 40/55 minutes

• AR 2000 L battery in 120/160 minutes

• AR 3000 L battery in 180/230 minutes

AK System charge times (mins 80/100%):

• AK 10 battery in 25/45 minutes

• AK 20 battery in 30/50 minutes

• AK 30 / 30 S battery in 35/60 minutes

Features:

• 12 A charging current for fastest charging

• Suitable for all STIHL AK and AP System batteries

• Safe battery charging thanks to the active cooling system

• With a jig for practical wall mounting and cable winding

Specification:

• Rated voltage: 230 V

• Rated current: 2.6 A

• Weight: 1.3 kg

• Power consumption: 0.6 kW

• Charging current: 12 A
